XTS

XTS-OS 44/32/22AAS

Length - 165mm, 170mm, 175mm
BCD - 104/64mm
Chainring - 44/32/22T
Chainline - 50mm
Crank Finish - Forged Alloy 6061/T6, High-polish Ti, Silver, Black Anodized
BB Cups - BC-1.37x24/68-73mm
BB Axle - Cromoly SCM435

*AAS: Outer Chainring - Press Alloy
  Middle Chainring - Press Alloy
  Inner Chainring -  Press Steel

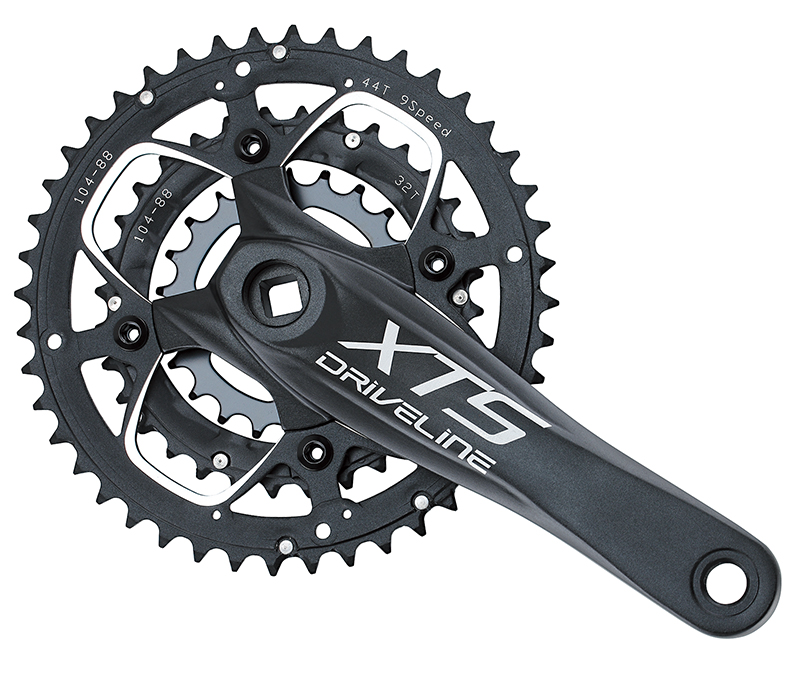

XTS 44/32/22AAS
XTS 44/32/22SSS


Length - 165mm, 170mm, 175mm
BCD - 104/64mm
Chainring - 44/32/22T
Chainline - 50mm
Crank Finish - Forged Alloy 6061/T6, High-polish Ti, Silver, Black Anodized
BB - ISIS (113mm), Square (113mm), Power Drive (113mm)

*AAS: Outer Chainring - Press Alloy
  Middle Chainring -  Press Alloy
  Inner Chainring - Press Steel
*SSS: Outer Chainring - Press Steel
  Middle Chainring -  Press Steel
  Inner Chainring -  Press Steel
