TK14

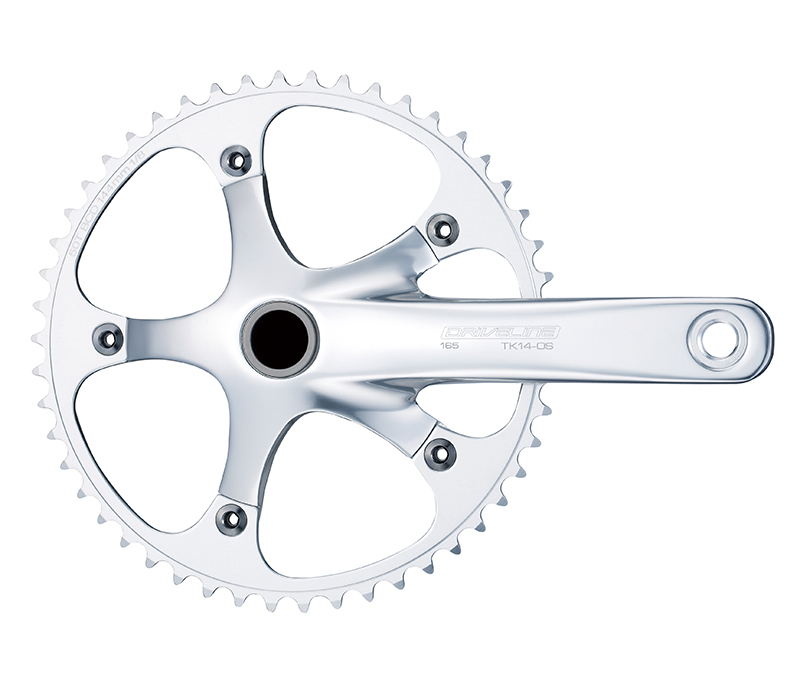

TK14-OS

Length - 165mm, 167.5mm, 170mm, 172.5mm, 175mm
BCD - 144mm

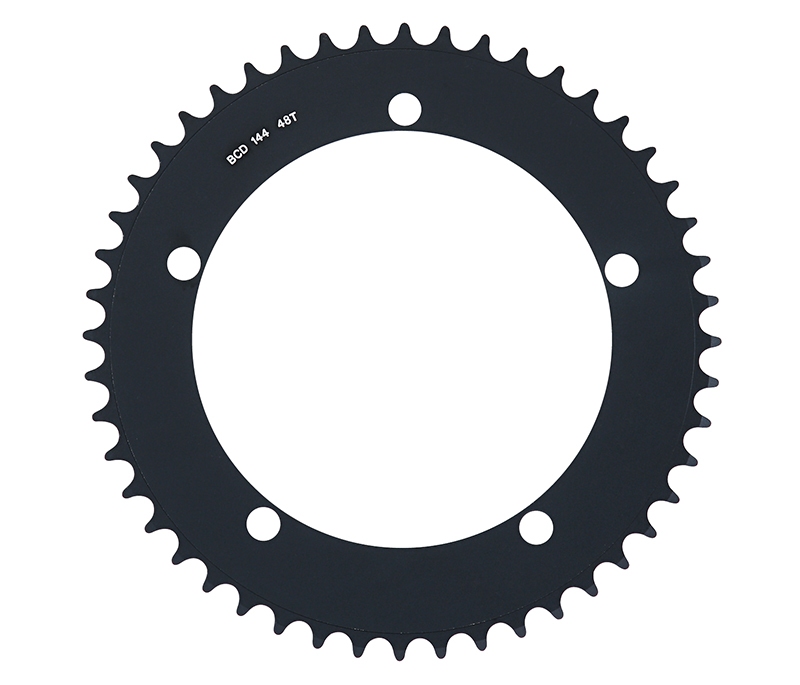

Chainring - C1: 7075 CNC 42T, 43T, 44T, 45T, 46T, 47T, 48T, 49T, 50T, 51T, 52T, 53T, 54T, 55T 7075
                        P1: 6061 Press 42T, 43T, 44T, 45T, 46T, 47T, 48T, 49T, 50T, 51T, 52T, 53T
Chainring Finish - Black, Ti, Silver Anodized
Chainline - 43mm
Compatibility - 1/2"x1/8" & 1/2"x3/32" chain
Crank Finish - Forged Alloy 6061/T6, High-polish Ti, Silver, Black Anodized
BB Cups - BC-1.37x24/68-73mm
BB Axle - Cromoly SCM435

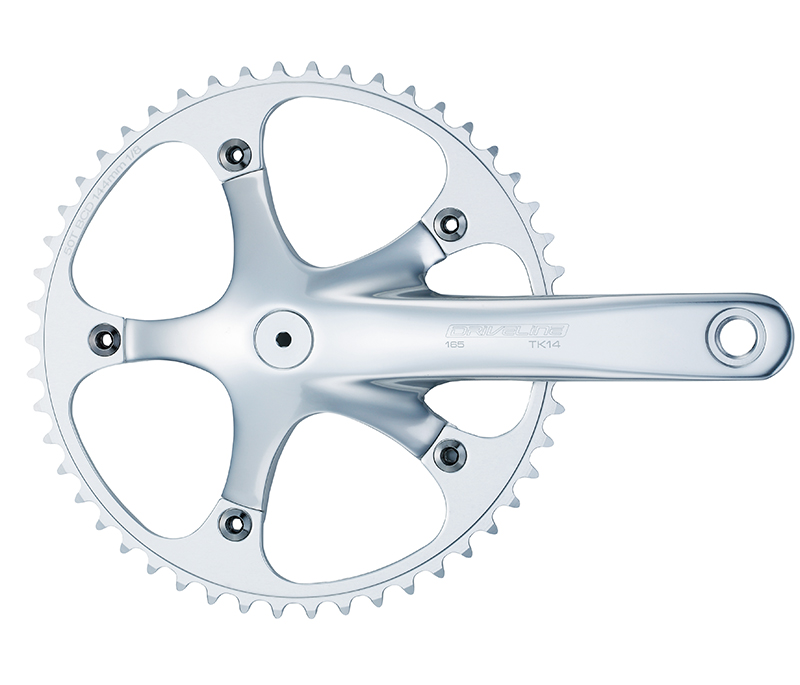

TK14

Length - 165mm, 167.5mm, 170mm, 172.5mm, 175mm
BCD - 144mm
Chainring - C1: 7075 CNC 42T, 43T, 44T, 45T, 46T, 47T, 48T, 49T, 50T, 51T, 52T, 53T, 54T, 55T
                    P1: 6061 Press 42T, 43T, 44T, 45T, 46T, 47T, 48T, 49T, 50T, 51T 52T, 53T
Chainring Finish -Ti, Silver, Black Anodized

Chainline - 43mm
Compatibility - 1/2"x1/8" & 1/2"x3/32" chain
Crank Finish - Forged Alloy 6061/T6, High-polish Ti, Silver, Black Anodized
BB Axle - Square (103)
